2500mm Nonwoven Carding Machine High Speed Polyester

Category：

Nonwoven Carding Machine

Product description

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HONGE
Certification:	ISO9001, CE
Model Number:	HYSL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotitable
Packaging Details:	Packed with PE film or wooden box.
Delivery Time:	120 days.
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per 100 days

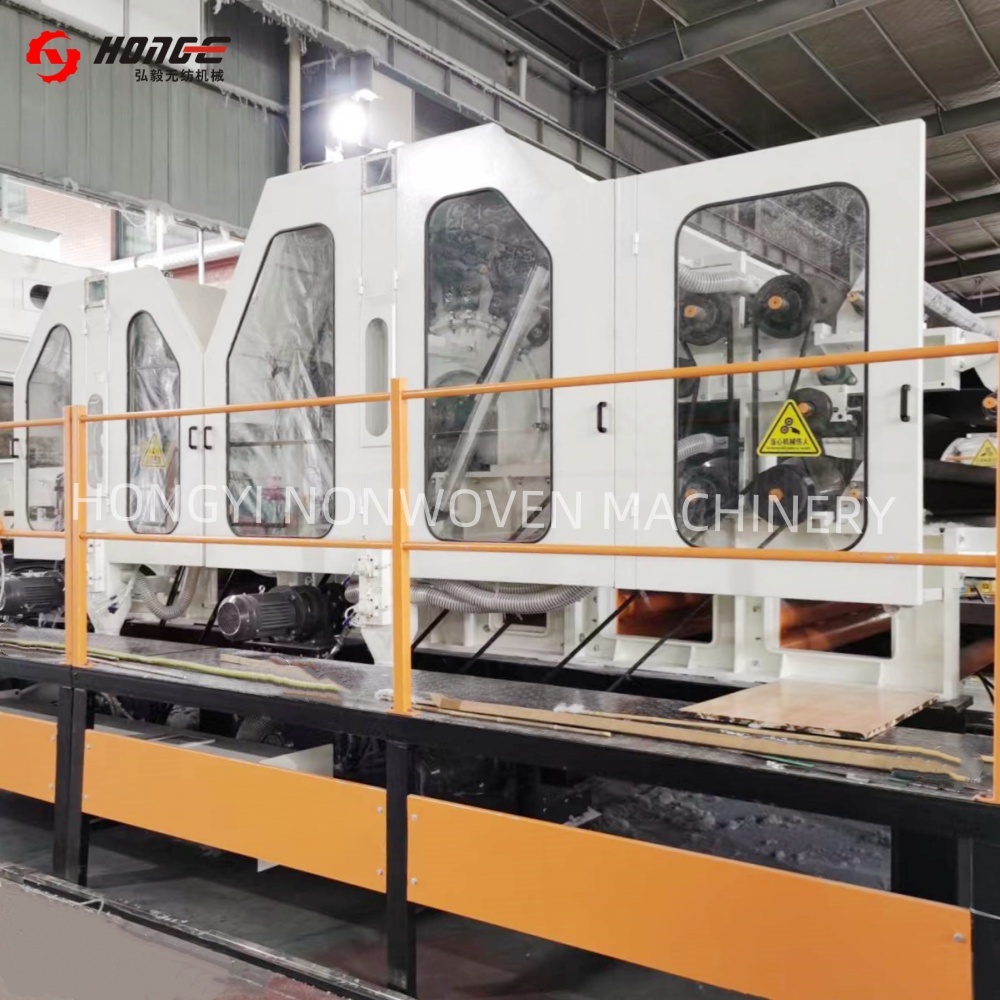

2500mm Nonwoven Carding Machine High Speed Polyester

Description

Product Name:	Nonwoven Carding Machine	Working Width:	1500-3500mm
Type:	Double Cylinder Double Doffer	Speed:	80m/min
Capacity:	600kg/h
High Light:	High Speed Nonwoven Carding Machine , 2500mm Nonwoven Carding Machine , Polyester Nonwoven Carding Machine

2500mm High speed Non woven polyester carding machine for sale

Introduction:

The utility model discloses a non-woven fabric carding machine. The non-woven fabric carding machine comprises a feeding mechanism, a carding mechanism and a stripping mechanism which are sequentially arranged, wherein the carding mechanism is provided with a big cylinder and doffers, a plurality of working roll and fur stripping roll groups are uniformly arranged on the mid-upper part of the big cylinder along the circumferential direction of the big cylinder, and each working roll and fur stripping roll group is provided with a working roll and a fur stripping roll. The non-woven fabric carding machine is characterized in that two doffers are arranged on the front side of the big cylinder up and down, a wind screen is arranged between the two doffers, the stripping mechanism comprises two stripping cutting dies, and the doffers correspond to the cutting dies in a one-to-one manner. In the non-woven fabric carding machine, the big cylinder is provided with the two doffers, and each doffer corresponds to one stripping cutting die, so that in the chemical fiber carding process, upper and lower continuous webs can be formed simultaneously, superposed on a conveying inclined curtain, and then sent to the next process; and the non-woven fabric carding machine has the advantages of good carding effect, more even and orderly formed webs, high production efficiency and the like.

Technical parameters:

Working width	1550-3500mm
Machine type	single cylinder double doffer, double doffer double doffer
Diameter of cylinder	1230mm, 850mm
Production capacity	800kg/h
Output speed	100m/min

Trade Information:

Price validity	30 days
Trade terms	EXW, FOB, CFR, CIF
Payment terms	30% paid as deposit by T/T, 70% shall be paid off before loading.
Lead time	120 days after deposit.
HS code	8449009000
Warranty	12 months
After-sale service	The seller will be responsible for the installation, and the buyer will be responsible for visa, round-trip tickets, food, accommodation, allowance USD200 per day per person, and other necessary healthy insurance and safet, etc.

our service

*Inquiry and consulting support

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*Nude packing ,buye, wooden case is optional.

*Woddencase packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.

*Any damage in transport of machines is not duty of the seller.

Company Information:

We are CHangshu Hongyi Nonwoven Machinery CO., LTD, with more than 15 years experience in China. There are about 100 workers, 5000m2 workshop. Our factory is located in Zhitang Industrial park, Changshu city.

Until now, we have established more than 50 series of complete nonwoven production lines all over the country and also expand our business scope abroad, up to date, we have supplied our products to Europe, South America, Middle east areas, Asia,etc.

We have the certificates of ISO 9001 and CE.

We are looking for agent all over the world. Welcome contact us for more information!
