CE Nonwoven Carding Machine, Double Cylinder Fiber Carding Machine

CE Nonwoven Carding Machine, Double Cylinder Fiber Carding Machine

Category：

Nonwoven Carding Machine

Product description

Application: This machine is used for opening, carding all grades of cotton,cotton-type fiber, and medium length chemical fiber less than 76mm, and forming a uniform fiber web

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HongYi
Certification:	ISO9001/CE
Model Number:	HYSL

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2 sets per month

CE Nonwoven Carding Machine, Double Cylinder Fiber Carding Machine

Description

Machine Width:	1550mm-2500mm	Final Products::	Fiber Carding Machine
WIDTH:	1.85-2.5m	Machine Type:	Single Cylinder
Keywords:	Non Woven Card	Advantage:	High Production Capacity
High Light:	CE Nonwoven Carding Machine , 2.5m Nonwoven Carding Machine , Single Cylinder Fiber Carding Machine

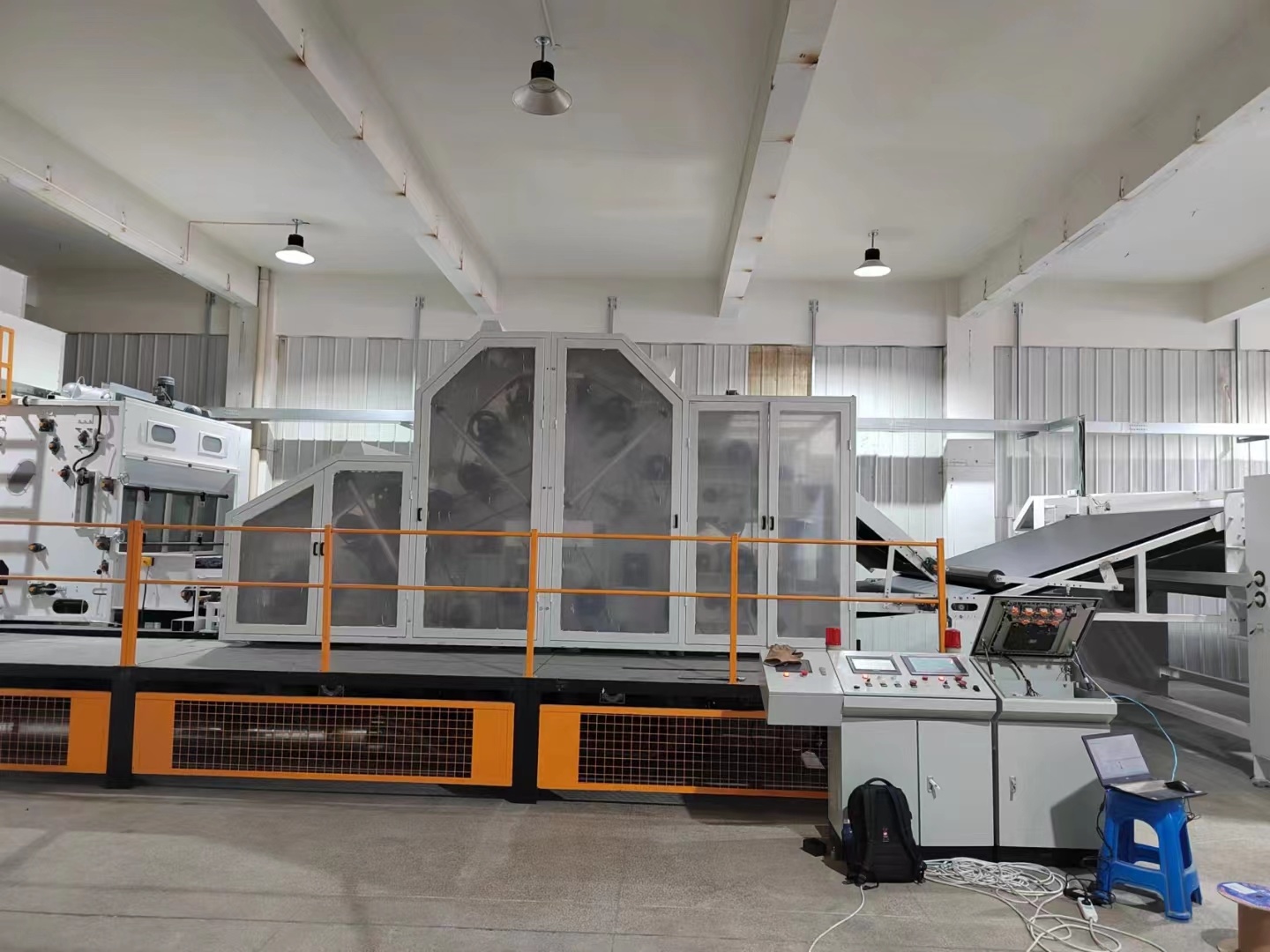

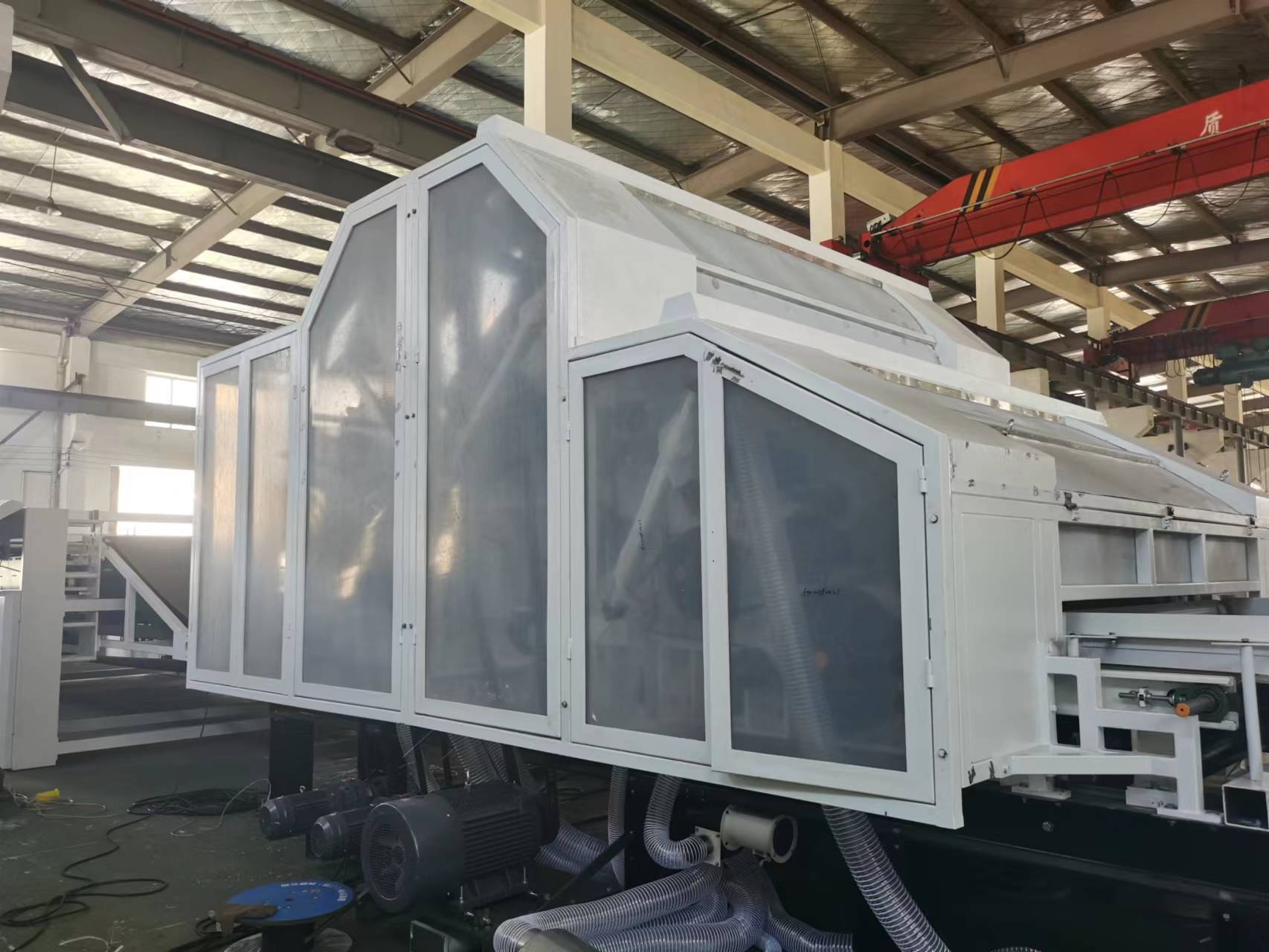

Popular Nonwoven Widely Used Fiber Single Cylinder Carding Machine

Application: This machine is used for opening, carding all grades of cotton,cotton-type fiber, and medium length chemical fiber less than 76mm, and forming a uniform fiber web

Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web, then flocks are fed to breast cylinder by feed roller and taker-in, then transferred to the main cylinder by transfer roller .8pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber, fiber which on the main cylinder is stripped onto the upper and lower web-out conveyor by stripping roller after passing doff and condenser roller, forming uniform web and feed to next machine

Name	SL150	SL185	SL185
Working Width(mm)	1500	1850	2500
Factory	Hongyi Nonwoven Machinery Co,Ltd
Output speed(m/min)	20-70
Web weight(g/m2)	10-50
Feed Roller	Dia(mm)	76(naked roller)
	Speed(RPM)	800
Breast cylinder	Dia(mm)	850
	Speed(RPM)	300
Main cylinder	Dia(mm)	1230
	Speed(RPM)	320
Doff	Dia(mm)	500
	Speed(RPM)	20
Condenser Roller	Dia(mm)	300
	Speed(RPM)	60
Total Power	70.4KW	108.8kw

Specifications:

Frame width :1700-2500mm
Capacity :500kg/h
Installed power:9.3kw
Self-carried reserve chute with controllable height
Inverter controlled output device and adjustable output speed
Adjustable output thickness ranging from 80-150mm according to productivity
The machine is used to process the batt of fiber to obtain a hard and thick thermal-bonding wadding. The low melt fiber will combine other fibers together through hot air penetration and a colling system for reinforcement.

Main specifications

Working width ≤5000mm
Product weight (60-1500)gram/㎡
Product thickness (3-200)mm
Surface temp. ≤220℃
Heating method hot oil circulation, electricity heating, direct burning
Oven working width 6.0m 8.0m 10m

Structure

- Single layer,single belt or double-belt structure

- Up and down belts hold the web for entering to get heated and formed.

- High temperrature resistance TEFLON belt with auto correction device.

- Main drive and fan inverter controlling.

Trade information

Payment term	30%as deposit by TT,70% must bepaid before shipment
Export country	Bangladesh, India ,Mexico ,Ruassian ,etc.
Delivery times	120 working days upon receipt of down payment
Package	nude , but according customers
After sales service	We will send 2-3 engineers to install machines and teach your worker how to run machine well. The buyer shoud provide the visa . Round-trip air tickets , food and accommodation , and the other necessary healthy insurance and safely etc
