Nonwoven Polyester Carding Machine In Textile 50m/min

Category：

Nonwoven Carding Machine

Product description

Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web, then flocks are fed to breast cylinder by feed roller and taker-in, then transferred to the main cylinder by transfer roller .8pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber, fiber which on the main cylinder is stripped onto the upper and lower web-out conveyor by stripping roller after passing doff and condenser roller, forming uniform web and feed to next machine

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HongYi
Certification:	ISO9001/CE
Model Number:	HYHX

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2 sets per month

Nonwoven Polyester Carding Machine In Textile 50m/min

Description

Output Speed:	20-50m/min	Working Width:	1550mm-2500mm
WIDTH:	1.85-2.5m	Machine Type:	Double Cylinder Double Doffer
Keywords:	Non Woven Card	Advantage:	High Production Capacity
High Light:	2.5m polyester carding machine , 50m/min polyester carding machine , fabric carding machine in textile

high quality advanced technology nonwoven polyester fabric carding machine

Working width	1550mm	1850mm	2000mm	2300mm	2500mm
Capacity: 6D fiber for reference	150KG/H	200KG/H	230KG/H	280KG/H	300KG/H
Chest Cylinder dia.	850mm
Main Cylinder dia.	1230mm
Doffer dia.	492mm
Output Speed :	≤40m/min

Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and form thicker fiber web, then flocks are fed to breast cylinder by feed roller and taker-in, then transferred to the main cylinder by transfer roller .8pairs carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber, fiber which on the main cylinder is stripped onto the upper and lower web-out conveyor by stripping roller after passing doff and condenser roller, forming uniform web and feed to next machine

Name	SL150	SL185	SL185
Working Width(mm)	1500	1850	2500
Factory	Hongyi Nonwoven Machinery Co,Ltd
Output speed(m/min)	20-70
Web weight(g/m2)	10-50
Feed Roller	Dia(mm)	76(naked roller)
	Speed(RPM)	800
Breast cylinder	Dia(mm)	850
	Speed(RPM)	300
Main cylinder	Dia(mm)	1230
	Speed(RPM)	320
Doff	Dia(mm)	500
	Speed(RPM)	20
Condenser Roller	Dia(mm)	300
	Speed(RPM)	60
Total Power	70.4KW	108.8kw

Specifications:

Frame width :1700-2500mm
Capacity :500kg/h
Installed power:9.3kw
Self-carried reserve chute with controllable height
Inverter controlled output device and adjustable output speed
Adjustable output thickness ranging from 80-150mm according to productivity

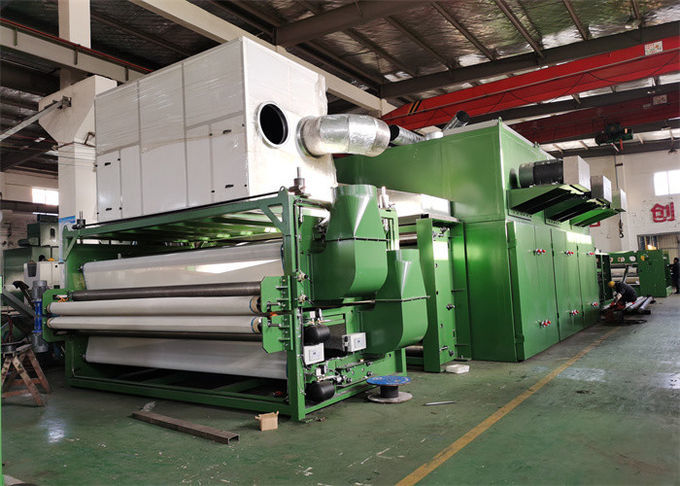

The machine is used to process the batt of fiber to obtain a hard and thick thermal-bonding wadding. The low melt fiber will combine other fibers together through hot air penetration and a colling system for reinforcement.

Main specifications

Working width ≤5000mm
Product weight (60-1500)gram/㎡
Product thickness (3-200)mm
Surface temp. ≤220℃
Heating method hot oil circulation, electricity heating, direct burning
Oven working width 6.0m 8.0m 10m

Structure

- Single layer,single belt or double-belt structure

- Up and down belts hold the web for entering to get heated and formed.

- High temperrature resistance TEFLON belt with auto correction device.

- Main drive and fan inverter controlling.

Trade information

Payment term	30%as deposit by TT,70% must bepaid before shipment
Export country	Bangladesh, India ,Mexico ,Ruassian ,etc.
Delivery times	120 working days upon receipt of down payment
Package	nude , but according customers
After sales service	We will send 2-3 engineers to install machines and teach your worker how to run machine well. The buyer shoud provide the visa . Round-trip air tickets , food and accommodation , and the other necessary healthy insurance and safely etc
