HONGYI 2500mm Double Cylinder Nonwoven Carding Machine for Wool

Category：

Nonwoven Carding Machine

Product description

It is suitable for carding of 1.5~20D×38~65mm artificial fiber. The fiber is carded fully so that the mesh becomes more even though the double-cylinder carding at high-speed. Feeding roller is driven by frequency conversion and it is equipped with anti-metal protection device.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HONGE
Certification:	ISO9001/CE
Model Number:	HYSL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	PE film or naked.
Delivery Time:	120 days.
Payment Terms:	L/C, T/T
Supply Ability:	2 or 3 lines per 120 days.

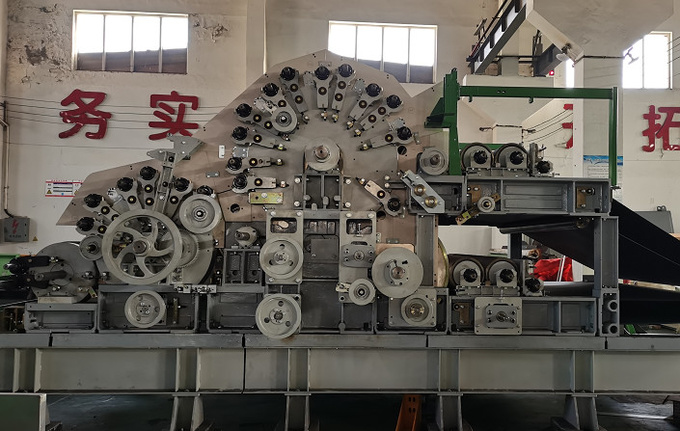

HONGYI 2500mm Double Cylinder Nonwoven Carding Machine for Wool

Description

Name:	Automatic Nonwoven Carding Machine For Cotton	Voltage:	380V,50hz,3phases
Power:	20kw	Material:	Polyester Fiber, Low Melt Fiber, Wool, Etc.
Specfcation Of Fiber:	3D-15D*51mm-72mm	Weight Range:	60gsm-1200gsm
Production Capacity:	Max. 500kg/h	Usage:	Arrange (as Far As Their Length Allows) The Fibers Parallel With One Another.
High Light:	Cotton wool carding machine , 3kw wool carding machine , 380V cotton carding machine

New Generation Cotton Wool Carding Machine

Name	2500 mm Double-cylinder Double-doffer Carding Machine
Width	1550mm , 1850mm , 2000mm , 2300mm,2500mm
Primary cylinder	φ850mm
Main cylinder	φ1230mm
Middle doffer	φ635mm
Output doffer	φ492mm
Output speed	20~50m/min
Cotton stripping	Roller
Electric power supply required	380V~460V

Technical parameters:

Working width	1500-3500mm
Weight range	60gsm-1200gsm
Raw material	6D-15D*38mm-51mm polyester fiber, low melt fiber, wool, etc.
Process technology	Thermal bonding process
Production capacity	max. 500kg/h
Applications	quilts, mattress, furniture, garments, insulation materials, etc.
Installed power	Depends.

Trade information:

Trade terms	FOB, CNF, or CIF
Lead time	90 days after deposit.
Payment terms	30% advance payment, 70% paid off before delivery.
Warranty	twelve (12) months after mechanical and electrical commissioning.
After-sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer and totally installation period is about 30-40 days depending on well cooperation of the buyer.
