600kg/h 8m 380V Nonwoven Needle Punching Machine

600kg/h 8m 380V Nonwoven Needle Punching Machine

Category：

Nonwoven Needle Punching Machine

Product description

Characteristics: High quality: Stable uniformity, adequate weight; Soft feeling, eco-friendly, recyclable, breathable; Good strength and elongation; Anti-bacteria, UV stabilized, flame retardant processed.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HongYi
Certification:	ISO9001/CE
Model Number:	250HYZCJ

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	3set /month

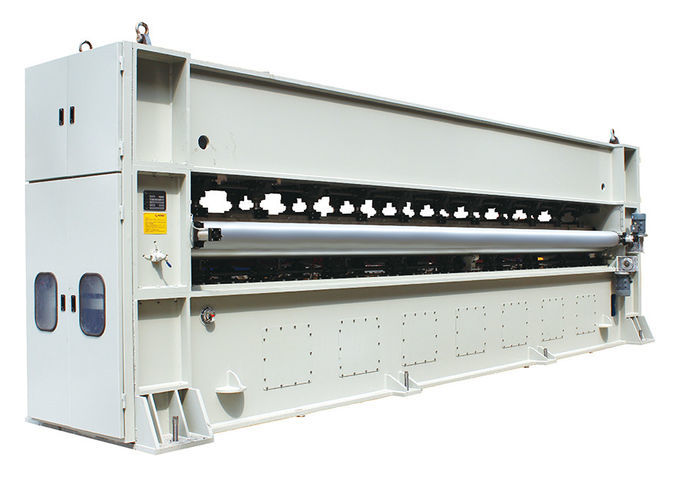

600kg/h 8m 380V Nonwoven Needle Punching Machine

Description

Capacity:	80-600kg/h	Width:	1.5m-8m
Needle Stroke:	30-60mm	Stroke Type:	Up-stroke ; Down-stroke
Needle Density:	2000~8000n/m	Voltage:	380/440V
High Light:	600kg/h Nonwoven Needle Punching Machine , 8m Nonwoven Needle Punching Machine , 380V nonwoven fabric machinery

Nonwoven Machine Needle Punching Carpet Production Line & Carpet Making Machine

1)Cross Lapper
Uses and Characteristics:To fold and pave the mesh after carding evenly into certain width and thickness.Then transfer it to next procedure after pressurization. All paving aprons are driven separately for easy adjustment.The reciprocal commutation is controlled by frequency conversion,and the rail is proof against oil leaking.
Input apron width	1700mm
Output apron width	2800mm
Lapping speed	≤45m/min
Total power	4KW

2)Outfit machine

It can be applied to any synthetic fiber, wool and quilt products of various sizes. It can be matched with non-woven carding machine and quilting machine to form quilt series of processing automatic production lines.

Inner width

2700mm

3)Opening machine
Inner width	1000mm
Mechanical size	2500mm2000mm800mm
Out put	150-180kg/h
Power	Motor 0.75kw 4 level one set(Laura feeding cotton)
	2.2kw 2level one set (Fan machine use)
	2.2kw 4level one set (Host opening)

4)Feeding machine
Application	It is mainly used for loosening raw materials, and the cotton can also be combined with the loosening machine through the counterweight, and the middle is transported by the fan.
Features	1. The amount of cotton entered by photoelectric control is basically uniform and the amount of cotton is stable.
	2. Adopt the volumetric feeding mechanism to achieve uniform and continuous feeding.
	3. The cotton roller and peeling roller are driven by the constant speed of the motor.
Inner width	1380mm
Out put	30-80kg/h
Power	Motor 1.1kw 4 level one set (Hairy and peeling roller)
Power	1.5kw 4 level one set (Angle nail curtain and Xiaoping curtain)

5)Carding machine
Inner width	1550mm
Cylinder diameter	φ50mm/φ1020mm/φ1230mm
Doffer	Single and double doffer
Mechanical size	3000mm2500mm2800mm
Out put	80-150kg/h
Power	Motor 0.75kw 4 level one set(Cutter box)
	0.75kw 4 level one set (Roller speed adjust)
	1.5kw 4 level one set (Doffer speed adjust)
	5.5kw 4 level one set (Host Cylinder)

Characteristics:

High quality: Stable uniformity, adequate weight;
Soft feeling, eco-friendly, recyclable, breathable;
Good strength and elongation;
Anti-bacteria, UV stabilized, flame retardant processed.

Trade term	EXW, FOB, CFR
Lead time	90 days
HS code	84490090
Payment term	30% deposit, 70% paid off before loading
Warranty	12 months
After sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD200/Day/engineer and totally installation period is about 30-35 days depending on well cooperation of the buyer.
