High Speed 10m/Min Nonwoven Needle Punch Machine

Category：

Nonwoven Needle Punching Machine

Product description

Application: The main applications of needle punched nonwoven materials are carpets, decorative felts, sports mats, furniture pads, shoes and hats, shoulder pads, synthetic leather base fabric, coated base fabric, ironing pads, filter materials, geotextile products, paper making blankets and so on.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HONGYI
Certification:	ISO9001/CE
Model Number:	HYGZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	PE film.
Delivery Time:	90 days.
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per 90days

High Speed 10m/Min Nonwoven Needle Punch Machine

Description

Certification:	CE/ISO9001 Automatic Cloth Ironing Machine	Power:	15-20KW
Frequency:	Max. 1300rpm	Needle Density:	3000-7000n/m
Stroke:	30-70mm	Suitable Material:	Polyester Fiber, PP Fiber, Low Melt Fiber, Jute Fiber, Glass Fiber, Etc.
High Light:	20KW nonwoven needle punch machine , 10m/min nonwoven needle punch machine , ODM non woven fabric making machine

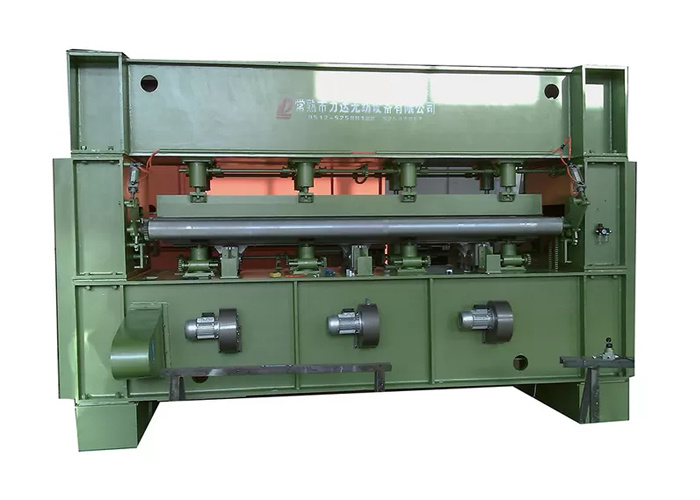

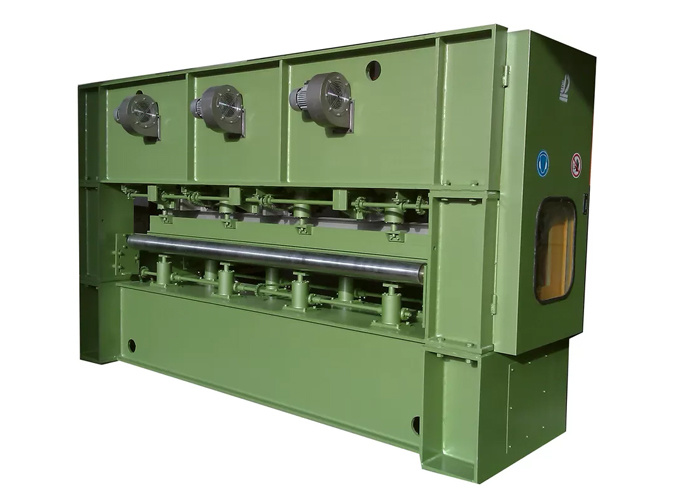

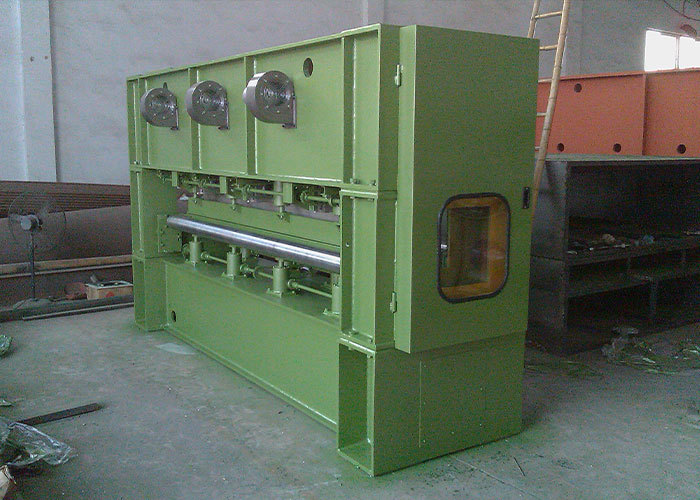

High Speed Needling Punching Nonwoven Textile Fabric Needle Loom Machine

The first part is the body part. The frame adopts a new splicing structure, which is divided into three parts: upper beam, middle beam and lower beam. Through the way of separation can be better, accurate processing.
The second part is the spindle drive part. The spindle is connected in sections. Each spindle unit has two bearing seats fixed on both sides of the eccentricity and two balance flywheels fixed on both sides. In this way, the force of the spindle on both sides of the connecting rod is uniform, which is a very good balance structure.
The third part is the raising part. The main purpose of the needling machine is to design the traditional high speed needling machine into a needling bed composed of a brush.
The fourth part is the main technical indicators of the equipment. Upon completion of manufacturing, the equipment shall achieve the following performance and technical indicators through synthesis and testing: low noise, low vibration and smooth operation.

Technical parameters:

Working width	1500-8800mm
Needle stroke	30-70mm
Needle density	3000n/m-7000n/m
Needle frequency	Max. 1300rpm
Machine type	Single shaft single board, double shaft single board, double shaft double board
Installed power	Depends on the product requests.
Line speed	1-10m/min
Needle board	Aluminum-Magnesium alloy plate

Structure characteristics:

a) Frame structures, to form by high quality armor plate welding.

b) It adopts single principle axis structure with single needle board.

c) Needle beam, working beam are high temperature shaped and precision processed.

d) Materials of main shaft adopt alloy steel, and made finely after high quality finishing.

e) The lifting and dropping of the bottom plate and stripper plate is controlled by electromotor and scale display.

f) Needle plate adopts Aluminum-Magnesium alloy plate, three plates with irregular computerized perforating.

g) The bottom plate and stripping plate with surface plated by hard chromium and polished.

h) Input and output roller with surface chrome-plated and controlled by separate frequency conversion.

Application:

The main applications of needle punched nonwoven materials are carpets, decorative felts, sports mats, furniture pads, shoes and hats, shoulder pads, synthetic leather base fabric, coated base fabric, ironing pads, filter materials, geotextile products, paper making blankets and so on.

It can also be used for automotive interiors, roofs and other insluation materials.

Trade information:

Trade terms	FOB, CNF, or CIF
Lead time	90 days after deposit.
Payment terms	30% advance payment, 70% paid off before delivery.
Warranty	twelve (12) months after mechanical and electrical commissioning.
After-sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. Installation cost is USD180/Day/engineer and totally installation period is about 30-40 days depending on well cooperation of the buyer.
