Double Doffer Nonwoven Carding Machine

Category：

Nonwoven Fabric Making Machine

Product description

Function and characteristics This machine is used for fully carding the fiber batt following opening and blending, then forming parallel or random web through doffer and random if required, which is then supplied to the next processes The company produces carding machines to cover all types of fiber, synthetic and natural fibers, etc. From very fine to very coarse deniers, fiber length up to 120mm.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Hong Yi
Certification:	CE/ISO 9001
Model Number:	200SLJ

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	15 working days after received your payment
Payment Terms:	Western Union, T/T, L/C, MoneyGram
Supply Ability:	4sets per month

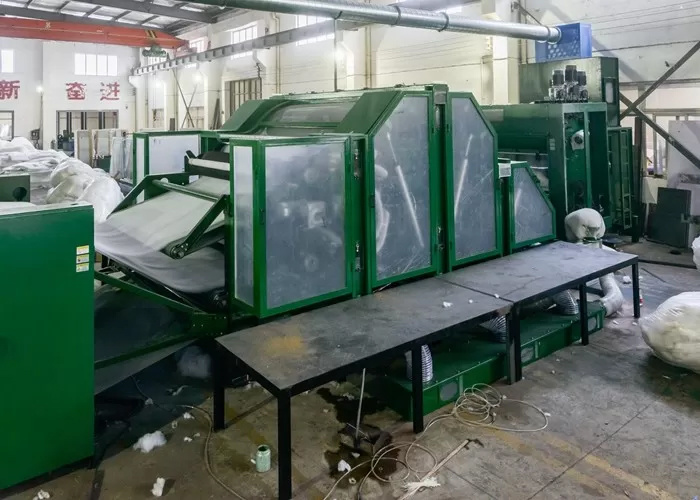

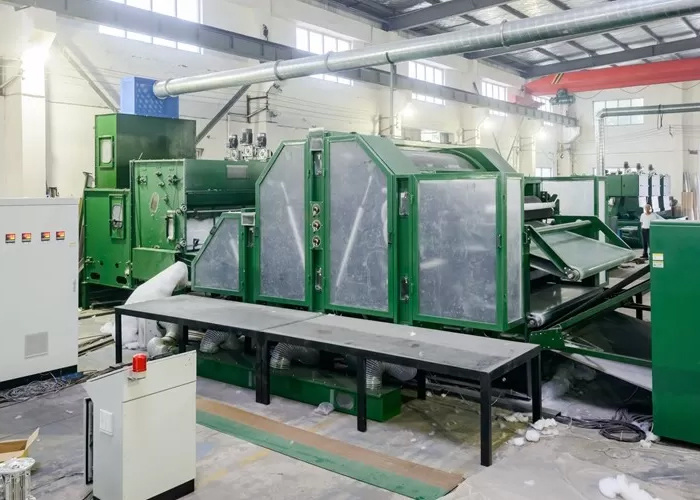

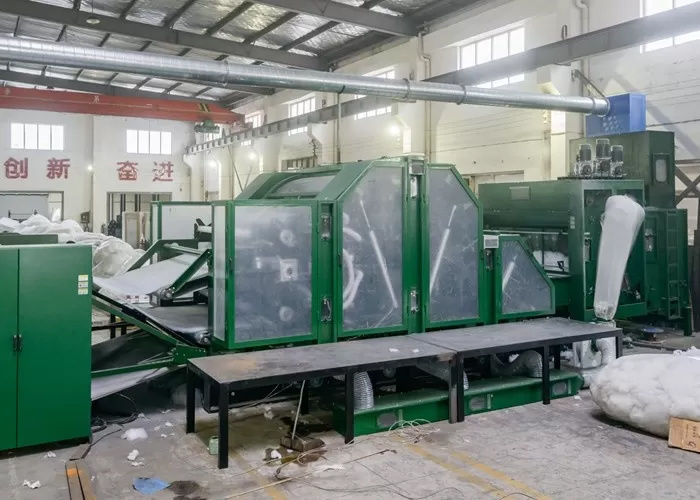

Double Doffer Nonwoven Carding Machine

Description

Name:	Nonwoven Fabric Making Machine	Capacity:	60m/min
Width:	2m	Raw Material:	Pp,pe , Or Other Man-made Fiber
Gsm Of Each Layer:	40g/m2	Power:	32kw
High Light:	60m/min Nonwoven Carding Machine , HongYi Nonwoven Carding Machine , 32kw double doffer carding machine

Changshu HongYi CE/ISO9001 2 m double cylinder double doffer Nonwoven carding machine for felt

Function and characteristics
This machine is used for fully carding the fiber batt following opening and blending, then forming parallel or random web through doffer and random if required, which is then supplied to the next processes The company produces carding machines to cover all types of fiber, synthetic and natural fibers, etc. From very fine to very coarse deniers, fiber length up to 120mm.

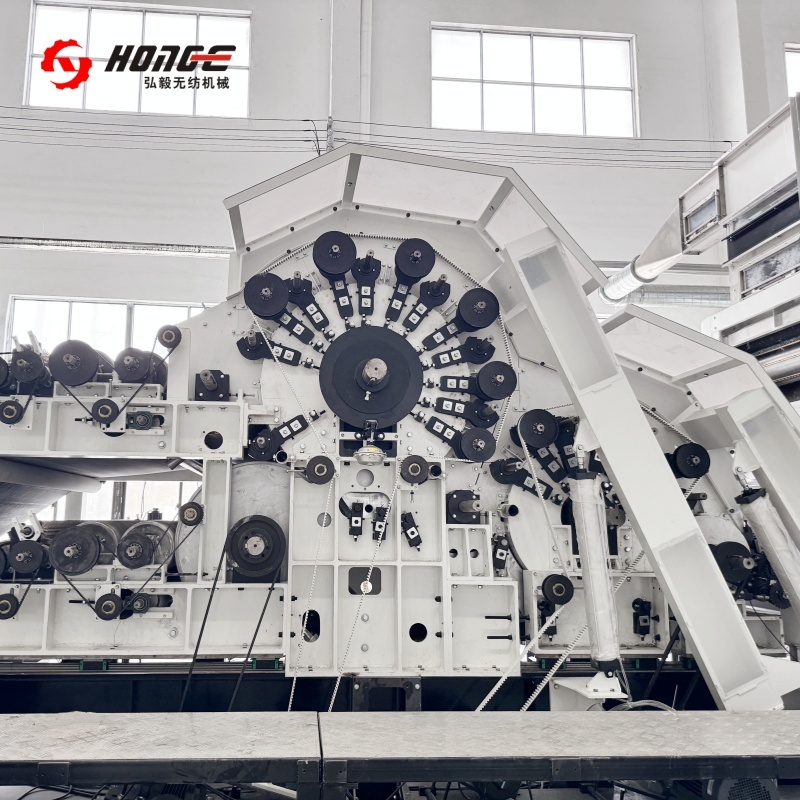

Card with cylinders up to 1.5meters in diameter and up to 2.5meters in width are produced as normal standard
Card main cylinders are balanced to a surface speed of 1500meters //min, output speed up to 80m/min, web weight 12-60g/m2
Card capacity is depending upon card type, fiber denier, types of fiber but can be excess of 800 kg/h

All types of cards both single and double doffers can be fitted with randomizer rollers or not dependent on the customer’s needs
All drives including main drive, doffers, workers, feed roll, etc. Are variable speed. Metal detection devices are standard on feed rolls
Card wires can be supplied as a surface wound or interlocking as required
The multi-point suction system ensures all free fiber and dust is continuously removed from the card to be recycled or fed another recycling process
High precision fitted undergirds effectively control the airflow and ensure the CV value of fiber web
Surface precision grinding of the cylinder ensures less than 0.02mm runout as normal tolerance
All main cylinders and lager roller are precisely balanced before assembly
Top covers are opened and closed by motor assisted system
The control system may be by servo-motor or inverter drives according to customer requirements. this ensures that the total line will have constant synchronization with controlled stable start and stop of the line
The card is fitted with a system to minimize rollers of fiber thus helping to protect card wire
The cards have a complete and total electronic safety system to meet all international standards. Other details and variables are dependent on customer’s needs and can be discussed with our technical staff

Specifications:

Name	Double cylinder and double doffer carding machine
Color	According to customer’s requirement
Capacity	60m/min
Width	2m
Raw material	Pp,pe , or other man-made fiber
Gsm of each layer	40g/m2
Power	32kw
