Nonwoven Equipment Fiber Feeding Machine High Speed Vibrating Feeder HYGM-220

Nonwoven Equipment Fiber Feeding Machine High Speed Vibrating Feeder HYGM-220

Category：

Nonwoven Vibrating Feeder

Product description

Functionality & application: The machine blends the fibers further more and utilize vibration work to deliver the even fiber batt into next carding process.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HONGE
Certification:	ISO9001/CE
Model Number:	HYGM-220

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Package:	Wooden package or PE film or naked
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T

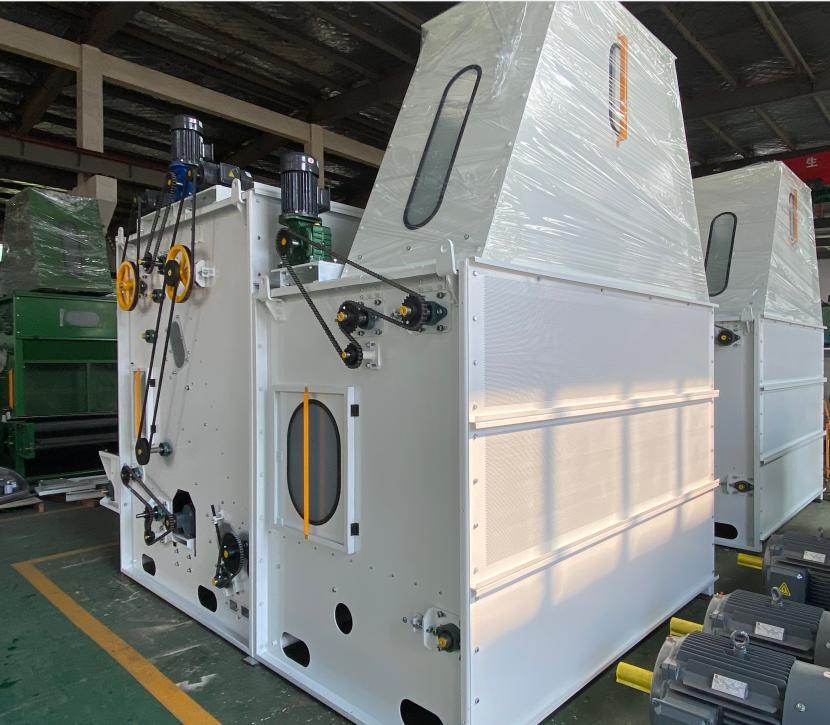

HONGE 2024 New Type HYGM-220 High Speed Vibrating Feeder

Description

Product Name:	Vibrating Feeder	Width:	2200mm
Certification:	CE/ISO9001	Power:	15.57kw
Raw Material::	PET，PP，low melt fiber，waste fiber
High Light:	High Speed Nonwoven Vibrating Feeder ,2200 mm Nonwoven Vibrating Feeder

HONGE 2024 New Type HYGM-220 High Speed Vibrating Feeder

1. The machine blends the opened fibers further and feed the even batt by vibrating to the next process. It can be applied for polyester, viscose, nylon, pp, glass fiber, etc.

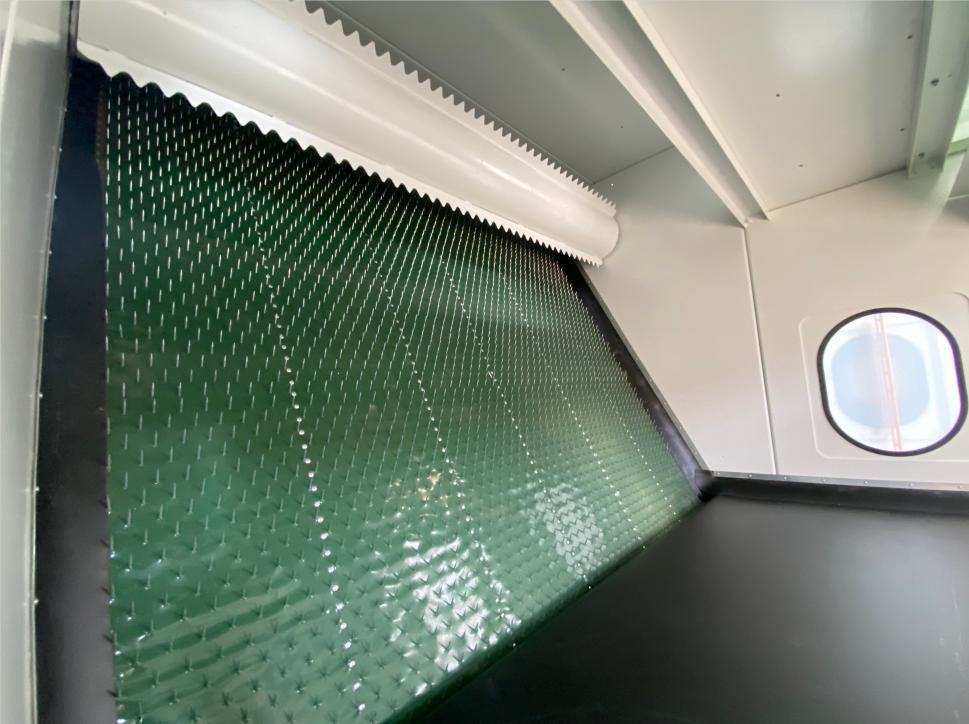

2. The spike and oblique lattice feeds the fiber delivered by main opener. The evener roller will remove the extra fiber and the stripper will strip the fiber and then the fibers drop to the vibrating cabin. The Start-Stop of the spike and oblique latticewill be controlled by the Photoelectric to make sure the fibers cubage and balance.
3. As there are many kind of the fibers, the hanging fiber will appear in the stripper, evener roller or wool board. This will affect the quality and evenness of the fiber. If this happens, it should be removed in time

Working Width	2200mm
Production Capacity	≤1000kg/h
Control	Photosensor
Motor's Brand	Siemens Beide Product

Vibrating Feeder

Working Width:2200mm
Capacity:1000kg/h
Installed Power:15.57KW

Functionality & application: The machine blends the fibers further more and utilize vibration work to deliver the even fiber batt into next carding process or air-laid process.

Features:

1. Synchronized operation with opener to regulate the storage and feeding instantly

2. The adjustable cubage and vibrating mode makes the density even.

3. Quantitative feeding & precise output

Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our factory

After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE

Trade information

Payment terms	30%deposite by TT, 70% should be paid off before delivery.
Delivrey time	Approx 30 working days after receiving the rest payment
Package	Wooden package or PE film or naked
Warrantty	12 months
After sales service	We will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip air plane tickets ,accommodation and allowance , the allowance is 180USD /person/day.
HS code	84490090
