CE 40KW 800kg/H Non Woven Fabric Making Machinery

CE 40KW 800kg/H Non Woven Fabric Making Machinery

Category：

Nonwoven Fabric Making Machine

Product description

Application: This machine is used for opening, carding all grades of cotton,cotton-type fiber, and medium length chemical fiber less than 76mm, and forming a uniform fiber web

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	CHINA
Brand Name:	HongYi
Certification:	CE /ISO9001
Model Number:	450PJM

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiation
Packaging Details:	NUDE OR WOODEN CASE
Delivery Time:	7DAYS AFTER RECEIVING THE PAYMENT
Payment Terms:	T/T, L/C, Western Union, Western Union, MoneyGram
Supply Ability:	1 LINE 30 DAYS

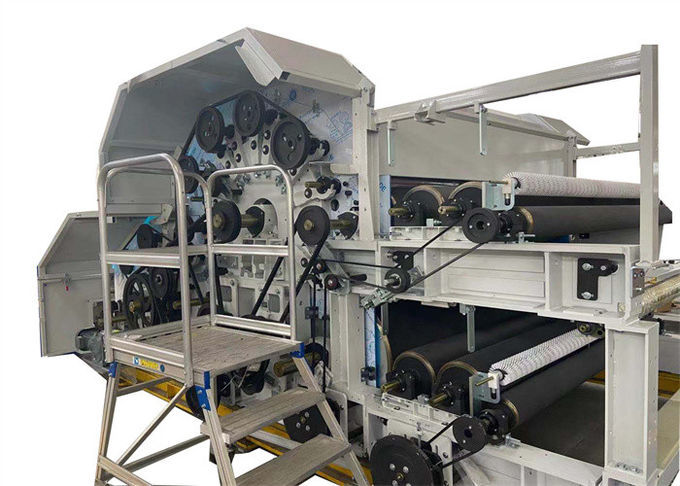

CE 40KW 800kg/H Non Woven Fabric Making Machinery

Description

Capacity:	500-800kg/h	Machine Type:	Double Cylinder Double Doffer
Speed:	Max. 70m/min	High Light:	40KW non woven fabric making machinery, CE non woven fabric making machinery, 800kg/h non woven equipment
Material:	Polyster Fiber, Wool, Jute Fiber, Etc.	Width:	1550-3200mm
Advantage:	High Production Capacity

High Capacity Mattress Making Equipment / Non Woven Fabric Making Machinery

Application: This machine is used for opening, carding all grades of cotton,cotton-type fiber, and medium length chemical fiber less than 76mm, and forming a uniform fiber web

Principle: fiber is fed to feed conveyor from front feed equipment (such as pneumatic tuft feeder )and forms a thicker fiber web, then flocks are fed to breast cylinder by feed roller and taker-in, then transferred to the main cylinder by transfer roller. 8 pairs of carding units (worker rollers and stripper roller )are equipped on breast cylinder and main cylinder for opening and carding fiber, fiber which on the main cylinder is stripped onto the upper and lower web-out conveyor by stripping roller after passing doff and condenser roller, forming uniform web and feed to next machine.

Structure

1. Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding;

2. Four rollers for feeding with diameter 90mm, anti-metal protection device is used at the input part of the machine, which could test the metal and has auto-stop warning;

3. There are five suits of working roller and stripping roller on main cylinder and four suits of working roller and stripping roller on breast cylinder to card fiber completely and form web evenly;

4. Edge-suction system is equipped and the dust particles will be transferred to special dust cage;

5. Walking platforms are placed on two sides of machine for maintenance.

6. Machine safe guard cover is transparent organic glass.

item	value
Marketing Type	New Product 2020
Automatic Grade	Full-automatic
Voltage	380/440V
Power	40kw
Certification	CE/ ISO9001
Working width	1550mm, 1850mm, 2000mm, 2300mm, 2500mm, 3200mm
Production Capacity	800kg/h
Diameter of cylinder	1230mm, 850mm
Suitable fiber	1.5D-15D*38mm-64mm
Output speed	Maximum 70m/min

• Product: soft wadding
• Product net width : up to 4500mm(or wider dependent on individual requirement )
• Product weight:60-1500g/m2
• Product thickness :3-200mm

Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our factory

After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE

Trade information
* Payment terms: 30%deposite by TT, LC , Western Union ,Moneygram 70% as balance paid before delivery LC
* Delivery time: Approx 7 working days after receiving the rest payment
* Package: make, wooden case
* Warrantty:12 months
* After-sales service: we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip airplane tickets , accommodation, and allowance, the allowance is 70USD /person/day
* HS code:84490090
* MOQ: 1set

Tag: non woven fabric making machinery, non woven fabric manufacturing machine, non woven fabric production line
