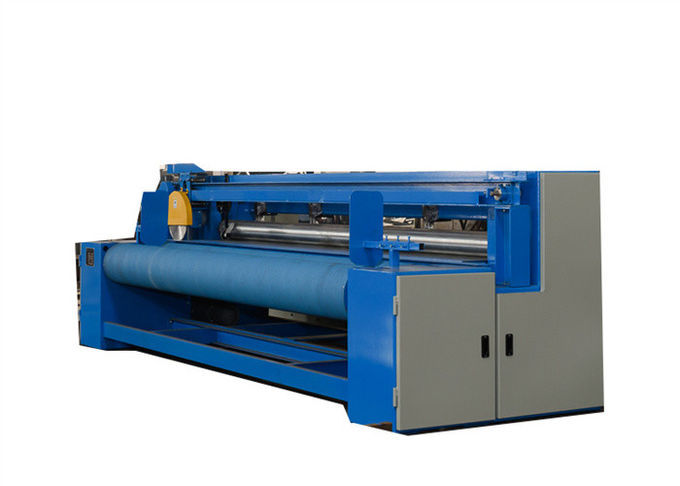

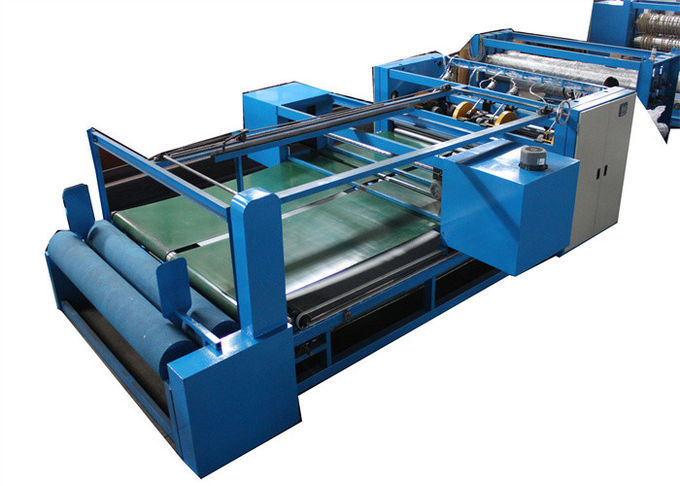

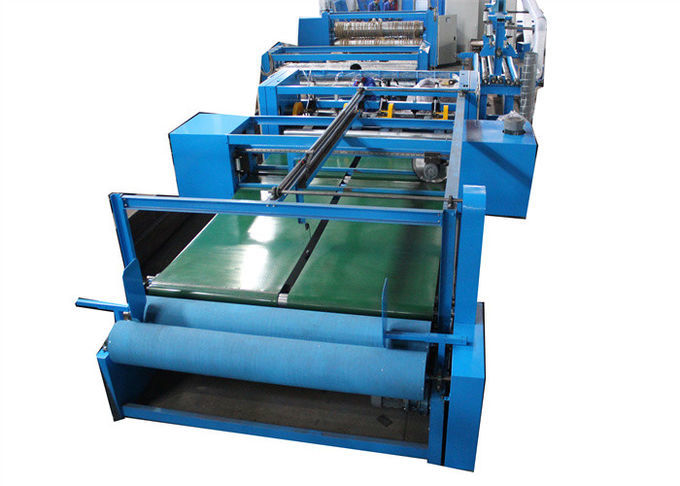

100 Cotton Canvas Fabric Non Woven Roll Cutting Machine

Product description

Automatic Cloth Slitting Machine 100 Cotton Canvas Fabric Nonwoven Roll Binding Strip Cutting Machine

Product Details

Product Details:

Place of Origin: Jiangsu, China
Brand Name: HongYi
Certification: CE/ ISO9001

Payment & Shipping Terms:

Price: $25,000.00/Sets >=1 Sets
Packaging Details: wooden case or naked
Supply Ability: 1 Set/Sets per Day

100 Cotton Canvas Fabric Non Woven Roll Cutting Machine


Features: Automatic Max. Workable Width:: 3200mm
Machinery Test Report:: CE Local Service Location: None
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Bearing
Condition: New Application: Fabric
Automatic Grade: Automatic Production Capacity: 100%
Voltage: 380V/220V Power: 3kw
Dimension(L*W*H): 2270mm*1400mm*2580mm Weight: 100kg
Warranty: 1 Year After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas
Product Name: Winding And Cutting Machine Cutting Power: 5kw
Material Capabilities: Soft Wadding And Stiff Wadding Products Working Width: 2m-9m
Working Speed: 1-15m/min Cutting Type: Cross Cutter And Vertical Cutter
Safety Device: Pre-alarming Bell Usage: To Coil The Soft Wadding In Rolls Or Cut Stiff Wadding Into Sheets.
Control System: PLC&touch Screen Port: Shanghai
High Light:

380V non woven roll cutting machine


15m/min non woven roll cutting machine


ISO9001 non woven equipment

Automatic Cloth Slitting Machine 100 Cotton Canvas Fabric Nonwoven Roll Binding Strip Cutting Machine


Width: 1.7m(2.05m,2.4m optional
Rotating speed of fabric roll 0-800rpm/min
Fabric roll diameter 300mm(400mm,500mm can also be customized)
Diameter of shaft 37mm
Power 0.75kw
Blade Power 1.5kw
Minimun width of cut strap 2mm
Voltage 380V/220V optional
Machine measurement 2.7mx0.75m,1.4m


Working width
Working speed
Suitable product
Needle punched and thermal bonded product
Motor brand
Siemens Beide made in Suzhou
1 year for main parts
After-sale service
Online technical service, free spare parts


Payment terms
30% as advance payment by T/T
70% as balance paid off before delivery.
Lead time
90 working days after 30% advance payment.
Naked or wooden case
The Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning.
Installation and commissioning
The installation and start-up will be carried out under the supervision of the Seller’s technicians if the Buyer requests. The Buyer is responsible for providing the necessary number of skilled mechanics, helpers and electrician to assist the whole installation and start-up. The Buyer is in charge of providing round-trip air tickets, appropriate local accommodation, meals, and local transportation for the technicians. The Buyer must assign qualified interpreter during the whole installation, start-up and training. Service cost
for installation, start-up and training is USD180 per engineer per day.
