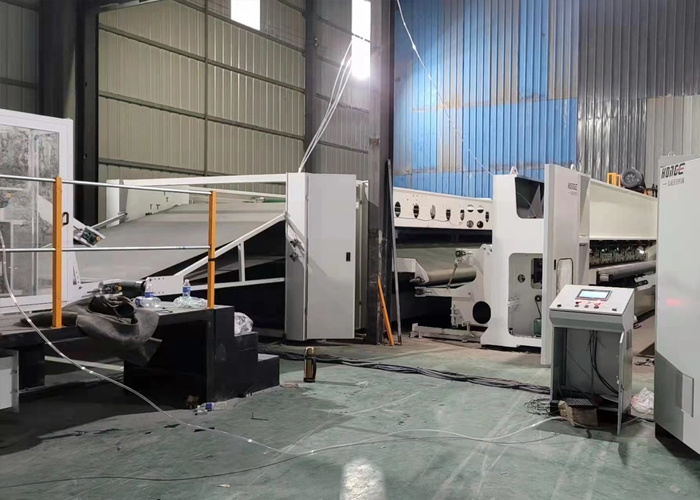

Polyester Felt Cross Lapper Machine With PLC Control System
Product description
Product Details
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HongYi |
| Certification: | CE /ISO9001 |
| Model Number: | 650fzx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | NUDE OR WOODEN CASE |
| Delivery Time: | 7DAYS AFTER RECEIVING THE PAYMENT |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 LINE 30 DAYS |
Polyester Felt Cross Lapper Machine With PLC Control System
Description
| Product Width: | 6500mm | Product Weight: | 100~1000g/m2 |
|---|---|---|---|
| Production Capacity: | 30~40T/d | Electric Power Supply Required: | 380V 50HZ(Can Be Changed) |
| Core Components:: | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear | Capacity: | 1-35m/min |
| High Light: |
Polyester felt Cross Lapper Machine,PLC control Cross Lapper Machine,PLC control nonwoven lapper machine |
||
Non-Woven Fabric Making Machine Hongyi brand New design 90m/min Polyester Fiber Cross Lapper Machine
Features:
1. To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization.
2. The output layer has high uniformity, smooth surface, and the product has two edges neatly and trimmingly, and the product quality is stable.
3. The use of high-performance frequency conversion or servo drive, stable operation, fast response.
4. The use of anti-static high-strength carbon curtain, to avoid stress deformation of the cotton layer operation.
5. Adopt unique corrective control principle.
6. Using a data control system, the output uniformity can be fully compensated with actual process requirements.
7. input and output is controlled synchronously, to avoid breakage of the cotton layer stretch.
8. Adopt man-machine interface for parameter setting and input of process data.
9. abnormal fault alarm automatically
10. Output bottom curtain width is detected automatically
Characteristics:
a. Machine frame is 8mm thickness armor plate assembled with brace.
b. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
c. Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
d. Cross lapping and Reciprocating is subsection controlled accurately.
e. Reciprocating adopt synchronous belt for drive.
f. Double belt pressing roller lattice is equipped at the output of the cross lapper.
Specifications of the machine for pp nonwoven fabric mattress & felt production line
| Name | machine for pp nonwoven fabric mattress & felt production line |
| Product width | 9000mm |
| Product weight | 100~1000g/m2 |
| Working speed | 90m/min |
| Production capacity | 30~40T/d |
| Electric power supply required | 380V 50HZ(Can be changed) |
Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory
After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE
Trade information
* Payment terms : 30%deposite by TT,LC , Western union ,Moneygram
* Delivrey time :Appox 7 working days after receiving the rest payment
* Package : nake ,wooden case
* Warrantty:12 months
* After sales service:we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip air plane tickets , accommodation and allowance, the allowance is 70USD /person/day
* HS code :84490090
* MOQ: 1set
Company Introduction :
We are HongYi Nonwoven Machinery CO.LTD. , more than 10 years in china,about 100 workers ,5000m2 workshop
Occupied more than 10% market share in Chinese nonwoven machinery market.Until now, we have established 10 series 0f nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.We are applying for the certificate of ISO 9001 and CE.Below are the main kinds of our products, from which you may acquaint yourselves with some of items we handle:1)wasted cloth recycled production line.2)felt production line.3)100% cotton fabric production line.4)nonwoven fabric productiobn line.5)geo production line.6)geo fabric.7)nonwoven fabric.8)soundproofing material.9)sold mattress.10)coir mattress
