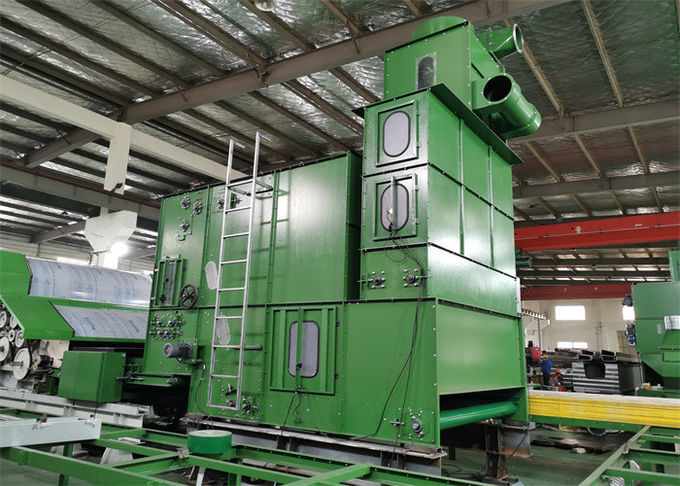

7.5kW Nonwoven Vibrating Feeder , Non Woven Fabric Making Machine

7.5kW Nonwoven Vibrating Feeder , Non Woven Fabric Making Machine

Category：

Nonwoven Vibrating Feeder

Product description

Functionality & application: The machine blends the fibers further more and utilize vibration work to deliver the even fiber batt into next carding process.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	China
Brand Name:	HongYi
Certification:	ISO9001/CE
Model Number:	130HYKB

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2 set per month

7.5kW Nonwoven Vibrating Feeder , Non Woven Fabric Making Machine

Description

Product Name:	Nonwoven Vibrating Feeder Machine	Width:	1100-2000mm
Certification:	CE/ISO9001	Power:	7.5kw
Raw Material::	3-15D*38~90mm	WIDTH:	1000~2440mm
High Light:	7.5kW Nonwoven Vibrating Feeder , 1000mm Nonwoven Vibrating Feeder , CE non woven fabric making machine

Nonwoven Cotton Wool Fiber Feeding Machines Cotton Fiber Web Feeder Machine Vibrating Feeder

1. The machine blends the opened fibers further and feed the even batt by vibrating to the next process. It can be applied for polyester, viscose, nylon, pp, glass fiber, etc.
2. The spike and oblique lattice feeds the fiber delivered by main opener. The evener roller will remove the extra fiber and the stripper will strip the fiber and then the fibers drop to the vibrating cabin. The Start-Stop of the spike and oblique latticewill be controlled by the Photoelectric to make sure the fibers cubage and balance.
3. As there are many kind of the fibers, the hanging fiber will appear in the stripper, evener roller or wool board. This will affect the quality and evenness of the fiber. If this happens, it should be removed in time

Working Width	1400mm 1700mm 2000mm 2300mm
Production Capacity	≤400kg/h
Machine Type	Photo eye electrically linked with the pre opener
Motors	Siemens Beide Product

Vibrating Feeder

Working Width:1700-2440mm
Capacity:500kg/h
Installed Power:9.3KW

Functionality & application: The machine blends the fibers further more and utilize vibration work to deliver the even fiber batt into next carding process.

Features:

1. Synchronized operation with opener to regulate the storage and feeding instantly

2. The adjustable cubage and vibrating mode makes the density even.

3. Quantitative feeding & precise output

Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our factory

After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE

Trade information

Payment terms	30%deposite by TT, 70% should be paid off before delivery.
Delivrey time	Appox 30 working days after receiving the rest payment
Package	nake or wooden case
Warrantty	12 months
After sales service	we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip air plane tickets ,accommodation and allowance , the allowance is 180USD /person/day.
HS code	84490090
