ISO9001 Nonwoven Polyester Fiber Cross Lapper 45m/Min

ISO9001 Nonwoven Polyester Fiber Cross Lapper 45m/Min

Category：

Cross Lapper Machine

Product description

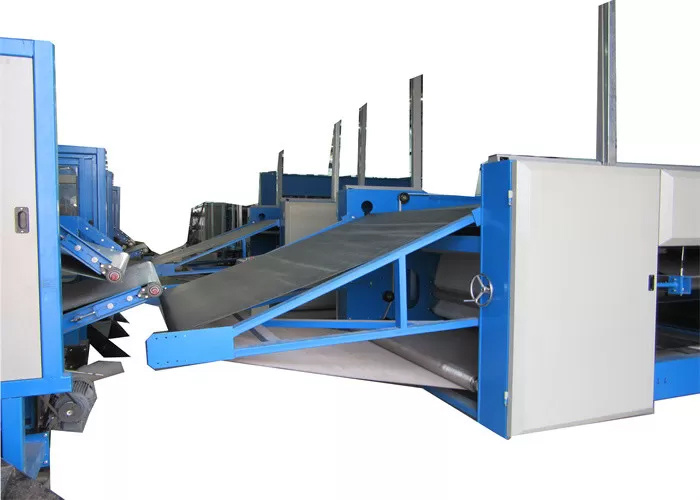

High quality nonwoven polyester fiber cross lapper machine To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization. All paving aprons are driven separately for easy adjustment. The reciprocal communication is controlled by frequency conversion, and the rail is proof against oil leaking.

Contact now

E-mail

Product Details

Product Details:

Place of Origin:	CHINA
Brand Name:	HongYi
Certification:	CE /ISO9001
Model Number:	650fzx

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiation
Packaging Details:	NUDE OR WOODEN CASE
Delivery Time:	7DAYS AFTER RECEIVING THE PAYMENT
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1 LINE 30 DAYS

ISO9001 Nonwoven Polyester Fiber Cross Lapper 45m/Min

Description

Lapping Speed::	45m/min	Product Width:	6500mm
Product Weight:	100~1000g/m2	Production Capacity:	30~40T/d
Electric Power Supply Required:	380V 50HZ(Can Be Changed)	Output Apron Width::	2700mm-7200mm
High Light:	Cross Lapper 45m/Min , Polyester Fiber Cross Lapper , ISO9001 nonwoven equipment

High quality nonwoven polyester fiber cross lapper machine

To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization. All paving aprons are driven separately for easy adjustment. The reciprocal communication is controlled by frequency conversion, and the rail is proof against oil leaking.

Name	Cross lapper
Input Width	1700mm , 2000mm , 2200mm,2700mm
Output width	2700-9200mm
Output speed	0-12m/min
Unevenness rate of fiber	≤5%
Total Power	4.5kw, 6.6kw, 8.5kw

Characteristics:
a. Machine frame is 8mm thickness armor plate assembled with brace.
b. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
c. Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
d. Cross lapping and Reciprocating is subsection controlled accurately.
e. Reciprocating adopt synchronous belt for drive.
f. Double belt pressing roller lattice is equipped at the output of the cross lapper.

Specifications of the machine for pp nonwoven fabric mattress & felt production line

Name	machine for pp nonwoven fabric mattress & felt production line
Product width	6500mm
Product weight	100~1000g/m2
Production capacity	30~40T/d
Electric power supply required	380V 50HZ(Can be changed)

Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory

After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE

Trade information
* Payment terms : 30%deposite by TT,LC , Western union ,Moneygram

* Delivrey time :Appox 7 working days after receiving the rest payment
* Package : nake ,wooden case
* Warrantty:12 months
* After sales service:we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip air plane tickets , accommodation and allowance, the allowance is 70USD /person/day
* HS code :84490090
* MOQ: 1set

Company Introduction :
We are HongYi Nonwoven Machinery CO.LTD. , more than 10 years in china,about 100 workers ,5000m2 workshop
Occupied more than 10% market share in Chinese nonwoven machinery market.Until now, we have established 10 series 0f nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.We are applying for the certificate of ISO 9001 and CE.Below are the main kinds of our products, from which you may acquaint yourselves with some of items we handle:1)wasted cloth recycled production line.2)felt production line.3)100% cotton fabric production line.4)nonwoven fabric productiobn line.5)geo production line.6)geo fabric.7)nonwoven fabric.8)soundproofing material.9)sold mattress.10)coir mattress
